High Air Pressure 4"DTH Hammers and bits SD4/QL40/DHD340/M40 for mining and water well
In DTH hammers, the rock drilling bit is a continuation of the shank, which the rock drill piston strikes directly. Since the piston is in direct contact with the drill bit, little energy is lost. This gives DTH hammers a nearly constant penetration rate regardless of hole length.
Basic Information
| Items | Replacement Parts |
| 1 | Top sub |
| 2 | O-ring of top sub |
| 3 | Breakout Ring |
| 4 | Check Valve |
| 5 | Spring |
| 6 | Compression Buffer |
| 7 | Air Distributor |
| 8 | Internal cylinder |
| 9 | Piston |
| 10 | External cylinder |
| 11 | Guide sleeve |
| 12 | O-ring of stop ring |
| 13 | Stop ring |
| 14 | Breakout ring |
| 15 | Drive chunk |
| 16 | Drill bit |

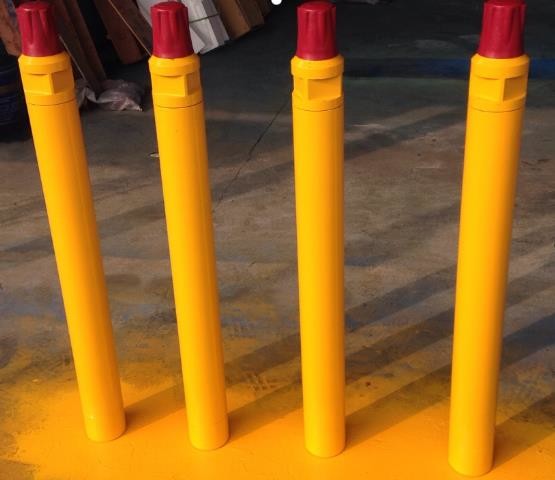

Photos
QL40 Hammer Specification
| Drilling Diameter(mm) | Hammer Length(mm) | External Diameter(mm) | Weight(kg) |
| φ110-φ135 | 1097(without bit) | 99 | 41(without bit) |
| Working Pressure(Mpa) | Air Consumption(m³/min) |
| 1.2-2.0 | 1.0Mpa: 6m³/min | 1.8Mpa: 10m³/min | 2.4Mpa: 15m³/min |
| Impact rate at 17 bar | Connection Rod Thread | Recommended Rotation Speed | Bit Shank |
| 27HZ | API 2-3/8'' Reg | 25-40 r/min. | QL40 |
DHD340 Hammer Specification
| Drilling Diameter(mm) | Hammer Length(mm) | External Diameter(mm) | Weight(kg) |
| φ108-φ130 | 881(without bit) | φ99 | 38 |
| Working Pressure(bar) | Air Consumption(m³/min) |
| 8.0-30.0 | 10bar: 5 | 18bar: 10.2 | 24bar: 15 |
| Connection Rod Thread | Bit Shank |
| API 2-3/8” Reg | DHD340A( With Foot Valve) |
| | | | | | |
| | | | | | |
| | | | | | |
| | | | |
| | | | |
| | | | |
| | | | | | |
| | | | |
| | | | |
| | | | |
| | | | | | |
| | | | |
| | | | |
| | | | |
| | | | | | |
| | | | |
| | | | |
| | | | |
| | | | | | |
| | | | |
| | | All can be designed according to your requests! |
| |
| |
Applications
• Underground mining
• Down the hole rock drilling
Competitive Advantage
• Valveless air distribution, more reliable.
• Simple design of the piston. Long life span.
• More efficient energy transfer, faster drilling speed, low air consumption and lower oil consumption.
• Fewer internal parts, simple structure, less failure and easier to maintain.
• Easy to disassembled because the top sub, the drive chuck and the external cylinder are connected by multiple steps thread.
